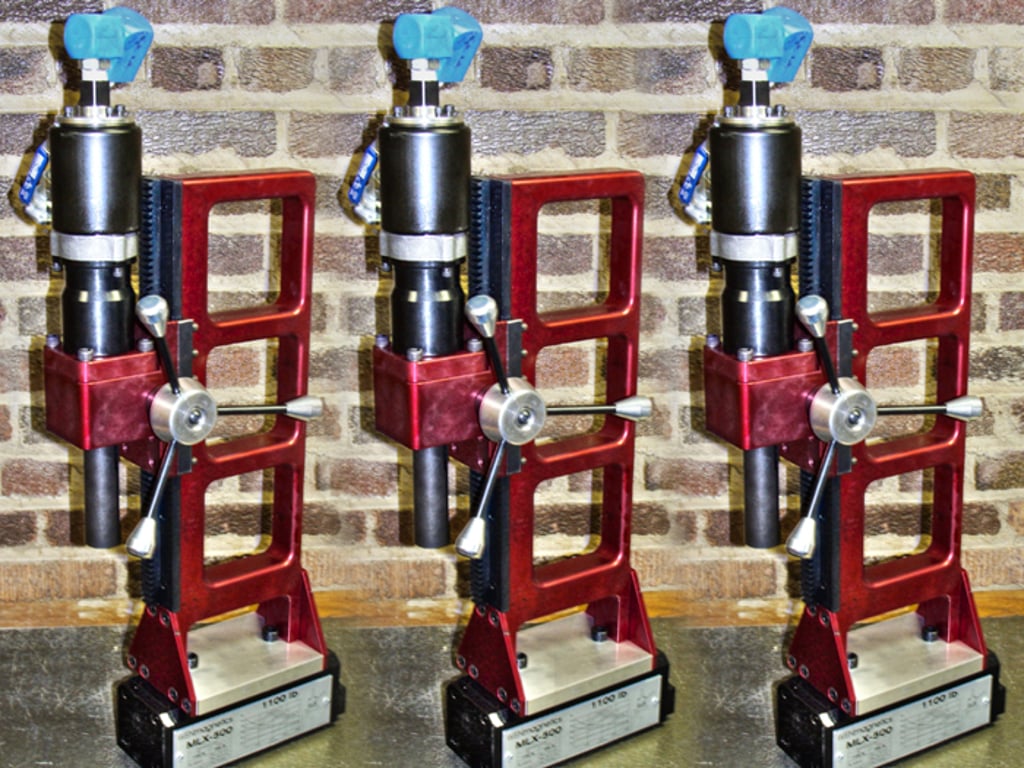

Mactech’s MT30 Portable Rack Drill is a versatile and easy to use drill for on-site drilling. The MT30 Rack Drill is ideally suited for applications where quick set-up and powerful drilling is required. An optional hanger bracket allows the drill to be positioned at a set distance from the top of pipe or other structure. An optional magnet attachment allows the MT30 Portable Rack Drill to be easily attached to almost any ferrous surface. The MT30 Portable Rack Drill can be customized with mounting options, tool holders and motors for your applications.

HEAVY DUTY MAG DRILLS GALLERY

MACTECH HEAVY DUTY MAG DRILLS MODEL(S) AVAILABLE

MT30 Portable Rack Drill (Hydraulic)

MAGNETIC ATTACHMENT BASE

• Max load, flat surface: 1100 lbs. (499 kg)

• Max load, round surface: 550 lbs. (249 kg)

​

• Detachment force: 3575 lbs. (1622 kg

PERFORMANCE SPECIFICATIONS

• Hydraulic Motor: 9.7 in3 (159 cc), 232 rpm, 101 ft-lbs torque (137 Nm),

@ 10 gpm (38 lpm), 1000 psi continuous pressure (69 bar). Weights

• Rack Drill with Hydraulic Motor: 47 lbs. (21 kg)

• Magnetic Attachment Base: 35 lbs. (16 kg)

• Hanger Bracket: 17 lbs. (8 kg)
